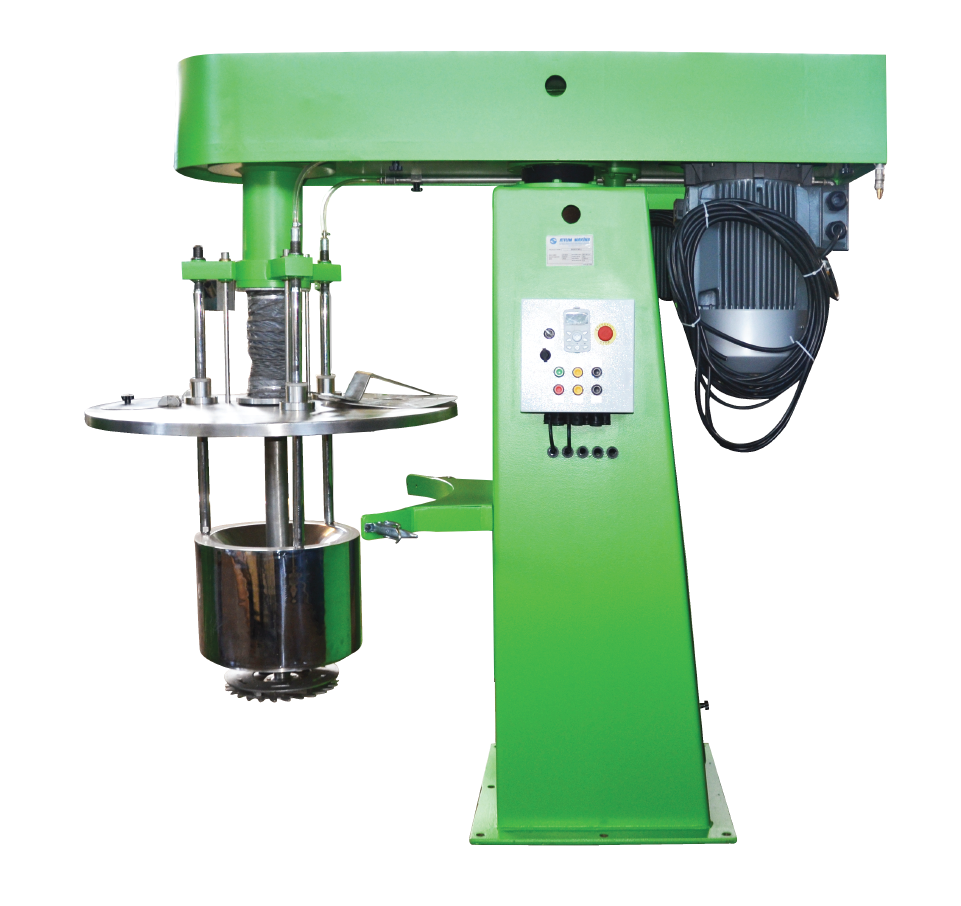

Basketmill

BASKETMILL

In the processing of low and semi-viscous products, especially products with low and medium viscosity such as paint, varnish, pigment paste, ink and cosmetics are widely used in areas where wet grinding and crushing is required. The role of the grinding beads in the grinding basket is great in this machine, where the dispersion and crusher work together. It saves time and material by performing both dispersion and crushing with a single machine. It is an effective machine type in which the solid particle size is reduced in the liquid to the minimum rate.

The grinding basket with superior wet grinding feature, it is designed to ensure that the product is crushed at high speed and that the product circulation passes through the basket intensively. High efficiency product switch, which is located under the grinding basket and has a contribution to dispersion, with a working impeller like a pump, it has the capability of effectively completing its operation in a short time. In the grinding basket reservoir, the heat control is effectively provided by cooling the boiler wall if necessary. All wet surfaces are made of stainless steel. The cleaning of the grinding basket and grinding beads, which is another important element, is carried out very easily by operating the product in the solvent.

Technical Table:

Engine Power 2.2 kw 4 kw 15 kw 22 kw 30 kw 37 kw 55 kw 75 kw
Grinding Basket Volume 0.18 lt 2.2 lt 10 lt 13 lt 20 lt 33 lt 55 lt 97 lt
Grinding Chamber Fill Rate (%) 60% 0.14 lt 1.3 lt 6 lt 8 lt 12 lt 19.8 lt 33 lt
75% 0.16 lt 1.6 lt 7.5 lt 11 lt 15 lt 22.5 lt 41.3 lt
78% 0.12 lt 1.5 lt 7 lt 11 lt 14 lt 21 lt 38.5 lt

Pilot Mikser

Note: Slowly lower the grinding basket while using a low-viscosity product. The product leaking from the grinding basket is provided with grinding medium suction during milling and is spindled. The product level must reach the minimum fill level in the boiler when the basketmill is started. Do not allow the machine to run before reaching the maximum amount. Do not let the dry dribbles dry out. Check that the grinding hopper is completely covered with product and ensure the safety of the shaft and the grinding basket. If the grinding basket is dry, its surfaces will be completely heated and a dangerous ignition may result.

High-Performance Grinding Systems

High-performance grinding systems are designed to deliver reliable, energy-efficient milling for a wide range of industrial applications. With engine power options from 2.2 kW up to 75 kW and grinding basket volumes from 0.18 liters to 97 liters, these systems support both laboratory-scale and large-scale production. Optimized grinding chamber fill rates ensure consistent particle size distribution and stable operation.

Technical Specifications

Engine Power Options:

• 2.2 kW
• 4 kW
• 15 kW
• 22 kW
• 30 kW
• 37 kW
• 55 kW
• 75 kW

Grinding Basket Volume:

• 0.18 lt
• 2.2 lt
• 10 lt
• 13 lt
• 20 lt
• 33 lt
• 55 lt
• 97 lt

Grinding Chamber Fill Rate – 60%:

• 0.14 lt
• 1.3 lt
• 6 lt
• 8 lt
• 12 lt
• 19.8 lt
• 33 lt

Grinding Chamber Fill Rate – 75%:

• 0.16 lt
• 1.6 lt
• 7.5 lt
• 11 lt
• 15 lt
• 22.5 lt
• 41.3 lt

Grinding Chamber Fill Rate – 78%:

• 0.12 lt
• 1.5 lt
• 7 lt
• 11 lt
• 14 lt
• 21 lt
• 38.5 lt

Efficient Industrial Grinding Solutions

These grinding systems are suitable for coatings, inks, chemicals, minerals, and other demanding applications. By combining the right engine power with the appropriate basket volume and optimized fill rate, the equipment delivers high throughput, reduced energy consumption, and excellent product quality. Robust construction and flexible configuration options make these grinding solutions ideal for both new installations and upgrades of existing production lines.

For more information on related process equipment and integrated solutions, visit the services and products pages.
