Turnkey Formaldehyde-Based Resin Production Plants

Advanced Technologies for UF, MF, and PF Resin Manufacturing

Atılım Grup Makina is a global provider of end-to-end engineering and manufacturing solutions for Urea, Melamine, and Phenol Formaldehyde resin production plants. These resins are the backbone of industries such as wood-based panels (MDF, Particleboard, Plywood), insulation, high-pressure laminates, and foundry casting.

We deliver fully integrated, turnkey facilities equipped with high-precision reaction control, automated dosing systems, and state-of-the-art safety features to ensure maximum product quality with minimum operational costs.

1. Urea Formaldehyde (UF) Resin Plants

UF resins are the most widely used adhesives in the forest products industry due to their fast curing times and cost-effectiveness.

• Main Applications: Particleboard (PB), Medium Density Fiberboard (MDF), Plywood, and glass/stone wool binders.
• The Atılım Solution: Our plants are designed to achieve strict E0 and E1 emission standards. Through advanced PLC-controlled pH and temperature ramping, we ensure high bonding strength and low free-formaldehyde levels in every batch.

2. Melamine Formaldehyde (MF) Resin Plants

MF resins are preferred for applications requiring superior hardness, thermal stability, and chemical resistance.

• Main Applications: Decorative laminates (HPL/LPL), melamine-faced boards (Suntalam/MDFlam), paper impregnation, and dinnerware.
• The Atılım Solution: We utilize specialized agitator designs to handle the solubility challenges of melamine powder. Our systems ensure high-clarity resins with excellent shelf-life stability and optimized flow properties for impregnation lines.

3. Phenol Formaldehyde (PF) Resin Plants

PF resins (Phenolic resins) are essential for products requiring extreme water resistance and durability. The production of PF resins is highly exothermic and requires sophisticated engineering.

• Main Applications: Marine-grade plywood, exterior construction panels, brake linings, foundry sands, and abrasive grinding wheels.
• The Atılım Solution: Safety is our priority. We equip PF reactors with high-capacity cooling jackets (internal/external coils and limpets) and rapid-response emergency systems to manage exothermic heat release. All equipment is ATEX-certified for hazardous environments.

Technical Plant Components & Engineering Excellence

Atılım Grup Makina plants are built with high-performance components designed for 24/7 industrial operation:

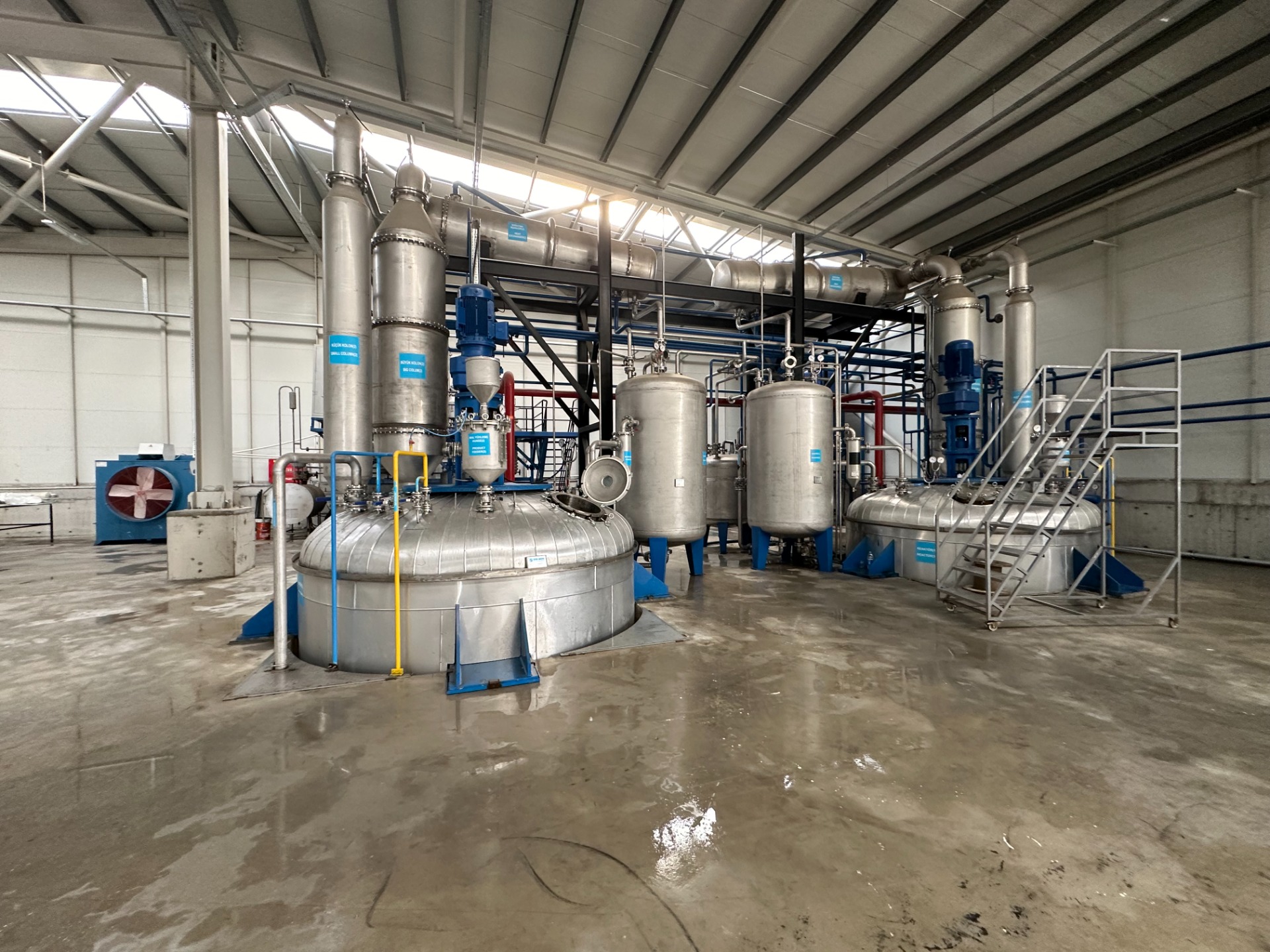

• High-Grade Reactors: Manufactured from AISI 316L or 316Ti stainless steel with high-vacuum and pressure resistance. Inner surfaces are mirror-polished to prevent resin buildup.
• Distillation & Condensation Units: Optimized column and condenser designs for efficient removal of reaction water and recovery of solvents.
• Automated Dosing & Weighing: High-precision Load-Cell systems for the automated feeding of Urea, Melamine, Phenol, Formaldehyde, and catalysts.
• Thermal Management Station: Integrated systems for steam or thermal oil heating, paired with high-efficiency plate or shell-and-tube heat exchangers for rapid cooling.
• PLC/SCADA Automation: A centralized control room for real-time monitoring of viscosity, pH, temperature, and pressure. Features include recipe management, data logging, and remote diagnostic capabilities.

Why Partner with Atılım Grup Makina?

1. Repeatable Quality: Our automation ensures that critical parameters like viscosity and solid content remain identical across all batches.
2. Energy Efficiency: We implement waste heat recovery systems and optimized motor controls (VFDs) to reduce the carbon footprint and utility costs.
3. Environmental Compliance: Integrated emission control and scrubbing systems to manage VOCs and formaldehyde vapors.
4. Turnkey Delivery: From initial P&ID and 3D layout design to manufacturing, piping, electrical installation, commissioning, and on-site operator training—we handle it all.
