Mixers

MIXERS

Mixer Machines are high-speed mixers and shredders designed for pre-dispersion / dispersion processes in all kinds of mixing and solids in a wide range of viscosities. It is ensured that liquid products and powders are mixed homogeneously.
Mixers can be manufactured with 50-1000 liters of mobile boiler, over 1000 liters fixed boiler. Depending on the demand, pneumatic system can be applied at different levels by applying moving lid.

Wall Mixers:

Wall mixers are used to make pigments and resins with suitable solvents as soon as possible. Especially designed for vertical column. According to the balance weight and valve bed system, the mixing shaft moves vertically, safely and smoothly. All of these properties move together with the wheel.

Technical Table:

Model Speed (rpm) Power (hp) Liquid Capacity (lt) Weight (kg)
M-3 940 2.6 250 310
M-5 940 4.8 500 355
M-7,5 940 6.5 750 420
M-10 720/1440 6/10.5 1000 500

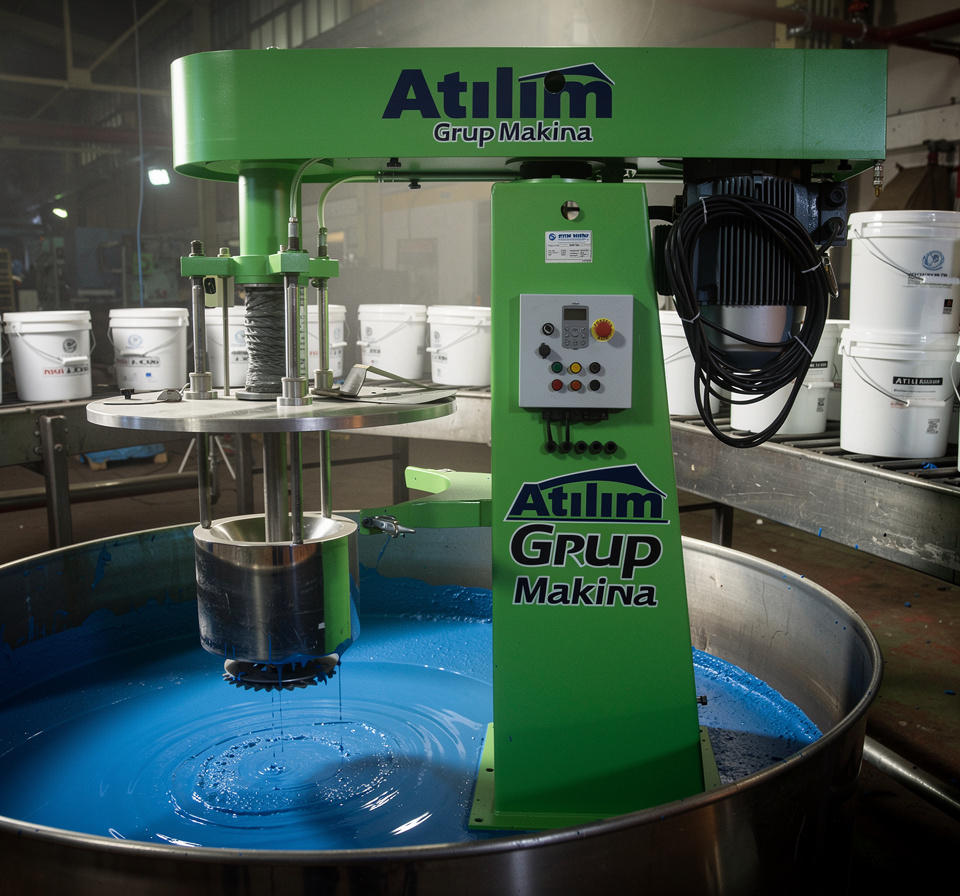

Paint Mixers:

The mixers are also designed for the mixing of non-foaming products at high speed (50-1500 rpm). The speed setting in the paint mixers can be adjusted via the inverter.

Technical Table:

Model Engine Power (hp) Blade Speed (d/dk) Blade Diameter (mm) Boiler Capacity (lt)
ATM 15 15-20 0-1400 250-280 600-800
ATM 22 22-30 0-1200 280-300 800-1200
ATM 30 30-40 0-1100 320-350 1200-1500
ATM 37 37-50 0-1000 350-450 1500-2000
ATM 45 45-61 0-900 450-500 2000-2800
ATM 75 75-102 0-800 600-660 3500-5000

Putty Mixers:

It is a multi-purpose mixer designed for various mixing processes of pharmaceutical, chemical, cosmetic and similar sectors. Sizes and strengths may vary according to the characteristics of the product to be mixed.

Technical Table:

Model Engine Power (hp) Dispers Blade Speed (d/dk) Mixer Blade Speed (d/dk) Dispers Blade Diameter (mm) Mixer Blade Diameter (mm) Boiler Capacity (lt)
H-15 15-20 0-1500 0-230 220 400-500-600 300
H-30/15 30-40 - 0-220 - 500-600-700 500
H-40/15 40-50 - 0-170 - 600-700-800 650
H-40/3 40 - 0-135 - 1150 1000
H-15/D 15 0-1400 0-125 285 850 350
H-30/D 30 0-1400 0-125 285 850 700
H-40/D 40 0-1400 0-125 285 850 750
H-50/D 50 0-1400 0-125 285 850 750
H-75/D 75 0-1400 0-150 530 1180 1250
H-100/D 100 0-1400 0-150 530 1180 1500

(Image Note: Explanations for "Paint mixer blade vortex formation" and "Putty mixer blade vortex formation" are provided in the diagrams.)

Laboratory Mixers:

Continuous speed and time display on digital screen. With advanced technology PID control, the speed remains constant, even though the viscosity of the product changes. It is manufactured from a vibration-free in-and-out mechanism. The mixer heads, such as the propeller rotor, are made of stainless steel. It is manufactured with safety measures in CE standards. It's very quiet.

Technical Table:

Model Engine Power (kw) Speed (rpm) Dispersion Blade Diameter (mm) Capacity (lt)
2027 0.27 0-10000 30-40-50 0.1-1
2075 0.75 0-9000 40-50-60-70 8
2110 1.1 0-4500 70-80-90-100 12
2150 1.5 0-3000 40-50-60-70-80-90-100 20
2220 2.2 0-4500 80-90-100-125 50
DPLX 0.75 EX 0.75 930-8400 40-50-60-70-80 8

Final Note: The best results are achieved with the measures shown on the next diagram. The disk's peripheral speed must reach 18-22 m/s. The shaft speed is shown on the digital display.
